4 POE (125W) Ports and 2 SFP Ports
Best for Camera, PTZ Camera, P2P Link, Radio, IP Phone, Security equipment and other networking equipment’s
Power Grid / No external power connection not required
Can work 24X7 with wide temperature range
Power backup can be increase as per site requirements
Ideal Solutions for Periphery, Defense border surveillance, Expressway surveillance, Highway surveillance, City surveillance, Tunnels, farm house, Power plant, refinery, National Park, Solar Farm, wind mill, Ports and all kind of remote surveillance
It is having Digital earthing so external earthing not required.
12V DC And 48V DC power supply port available for any external equipment connectivity
IP 66 enclose for outdoor application

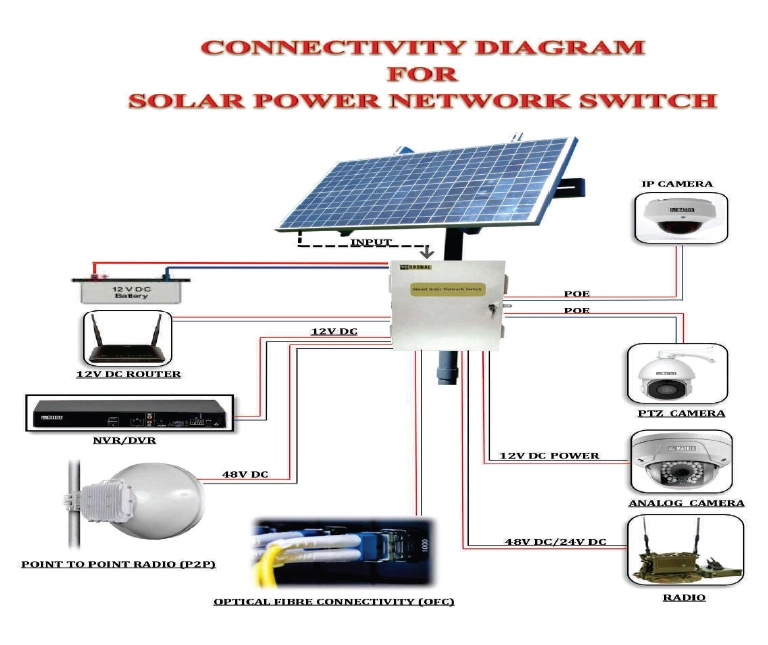

➤ Yes, it is having 4 POE port for IP Camera and POE PTZ camera. IT is also having 12V DC power output for HD Camera power supply.
➤ Yes, it is having 12V DC power supply option for DVR & NVR and also having space to keep 4 channel small DVR & NVR inside the box. You can connect 4G router on 12V DC power supply or USB and you can keep router in the box.
➤ It is having 2 Fiber port. Both are support up to 100KM single mode fiber module and support up to 550 Meter for multi-mode fiber module.
➤ It can support up to 180AH battery on standard model.
➤ 330W solar panel with 12V can be connected on this standard model.
➤ Yes, we can do it as per your requirement for number of POE Ports, battery backup time, Installation mechanism, extreme temperature, number of fiber ports or box size. We can do it.
➤ No, this device does not required external earthing connection because it is having inbuilt digital earthing protection.
➤ Yes, you can connect it in premium model with 300W Ac power port options.
Compatible with any 48V DC run equipment’s like Exchanges, IP-PBX,
Radio, Gateways,Router, Telecom equipment’s and many more
Multiple devices can connect simultaneously with different power requirements

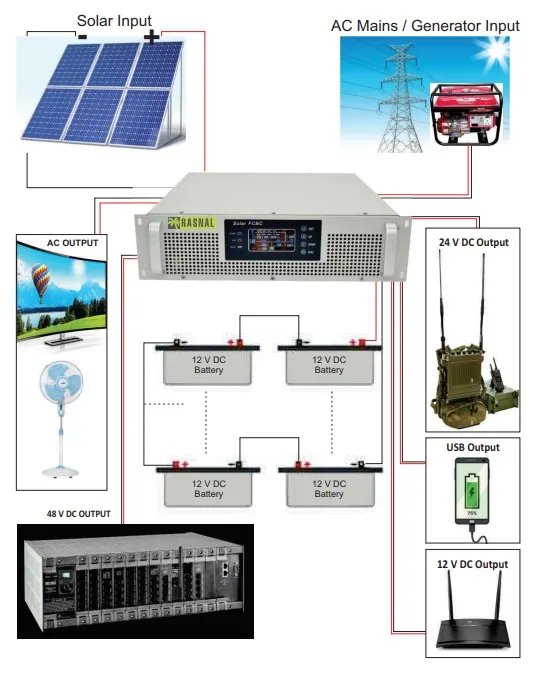

12VDC, 24VDC, 48VDC,USB and 230VAC output on single device with sine wave power supply
It can work on solar power charging option(without electricity)
Can work with solar and power grid connections No external earthing required for connected equipment
Errors free change over during mains failure.
High operating temperatures range (-20to+55C) Very Low EMI to International standard. High EMC to lnternational standard.
➤ Yes, you can connect 12V DC products like router and modems, 24V DC products like Radio and walky-talky, 48V DC products like Exchange and MER, 230V AC power products like all kind of Network switches Computer and USB charging products.
➤ Yes, you can use this device with solar panel for power and battery charging.
➤ Yes, you can use this device with electricity or generator for power and battery charging.
➤ Yes, you can use. If solar power not available then it will automatically change over to electricity.
➤ Yes, it will give pure sine wave power to all the equipment's.
➤ Yes, it is having 19 inch rack mounting option.
➤ Yes, we can do it as per your requirement with number of battery support, number of power output option and number of output amp & voltage options.
