Key Features

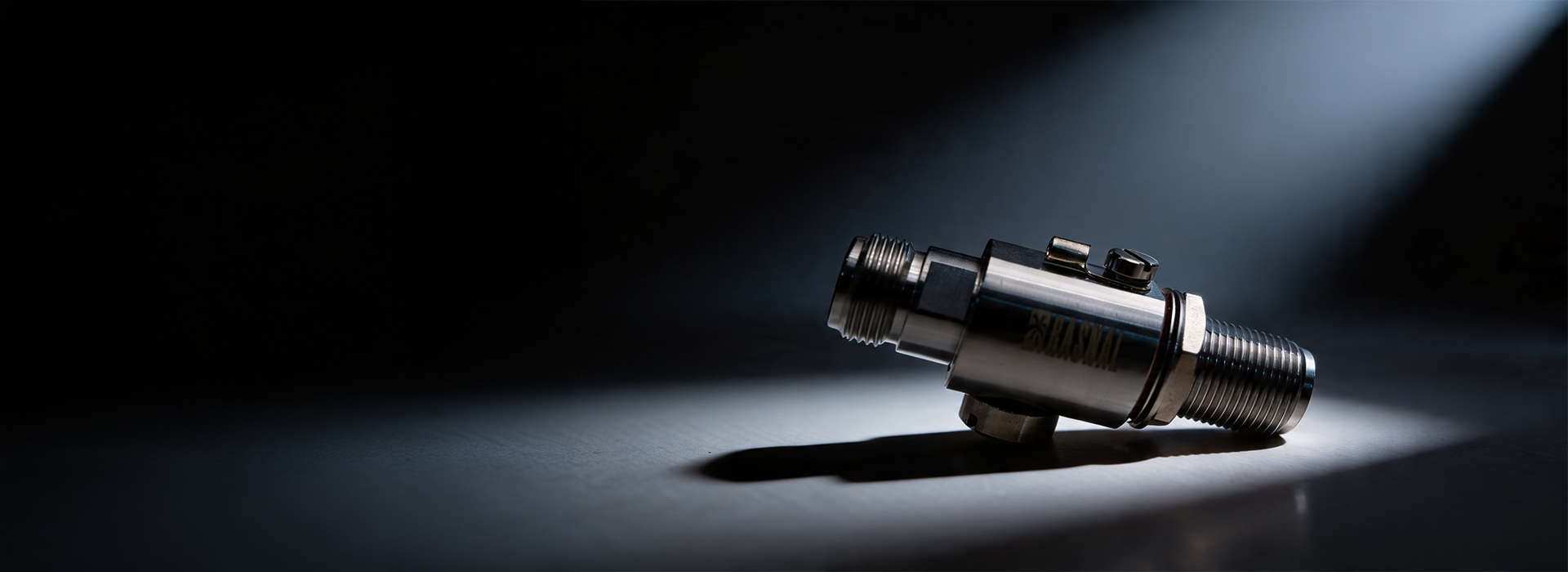

RF coaxial surge protector
DC-3.5 GHz, DC-7 GHz, 2.5 GHz
190 W
Low insertion loss
Removable GDT
DC-pass
Bi-directional protection
Deal perfect lightning protection with integrated surge protection for systems in the protection zone, Common grounding, equip-potential function , surge elimination via energy conversion function, No secondary Grounding rod required for low earthing resistance, targeting perfect lightning surge protection for advanced networked systems.
| Max. DC operating voltage |
Uc |
200 Vdc |
| Frequency range |
f |
DC-3.5 GHz, DC-7 GHz, 2.5 GHz |
| Insertion loss |
|
< 0.5 dB |
| Return loss |
|
> 20 dB |
| Impedance |
|
50 ohms |
| VSWR |
|
< 1.3:1 |
| Max. load current |
IL |
10:00 A |
| Residual Current Leakage current to Ground |
Ipe |
None |
| Max. Discharge current max. withstand @ 8/20 µs by pole |
Imax |
20 kA |
| Protection mode(s) |
|
Common mode/Differential mode |
| Protection level @1kV/µs (C3) |
Up |
< 800 V |
| Impulse current 2 x 10/350 µs Test - D1 Category |
Iimp |
1 kA |
| Nominal discharge current C2 Category |
In |
5 kA |
| Max Power |
|
190 W |
| Typical let through energy (50 ohms) input 4kV 1.2/50µs - 2kA 8/20µs |
|
350 µJ |
| Insulation resistance |
IR |
≥ 10 GOhms |
| Technology |
|
Gas discharge tube |
| Connection to Network |
|
Connector Male/Female |
| Mounting |
|
Feedthrough |
| Housing material |
|
Brass/Surface plating: Cu Zn Sn |
| Operating temperature |
Tu |
-40/+85°C |
| Protection rating |
|
IP66 |
| Outdoor application |
|
Yes |
| Failsafe mode |
|
Short-circuit |
| Disconnection indicator |
|
Transmission interrupt |
| Dimensions |
|
See diagram |
